This post is the continuation of:

Now we want to make a triple integration between UpTimeRobot , OpsGenie (currently called Jira Ops) and Slack.

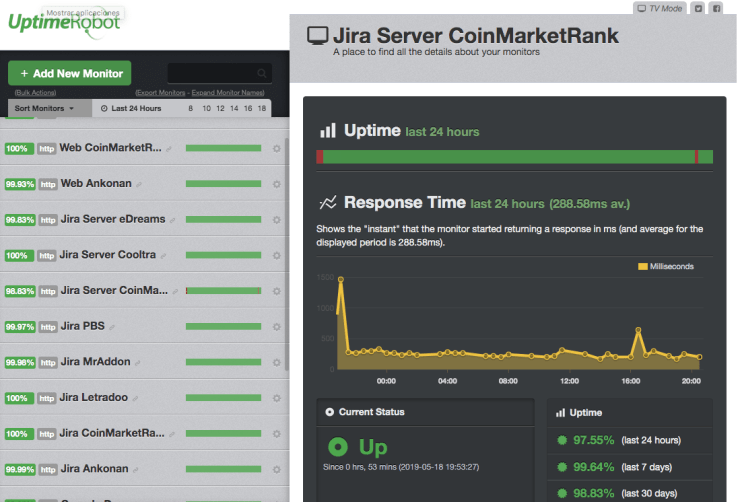

First of all, in UpTimeRobot we configure a permanent “ping” to one of our sites to detect the downs and ups of the service.

Captura de pantalla 2019-05-18 a las 22.46.51

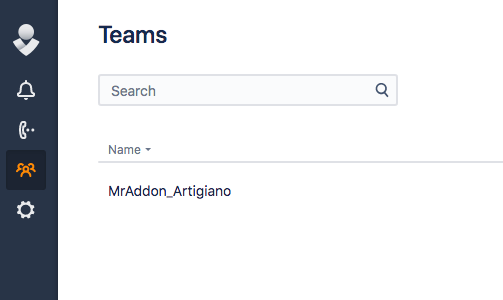

After the configuration, we can go to OpsGenie (or Jira Ops, the new name). We need to create a new Team, in this case called “MrAddon_Artigiano

Captura de pantalla 2019-05-18 a las 22.49.57

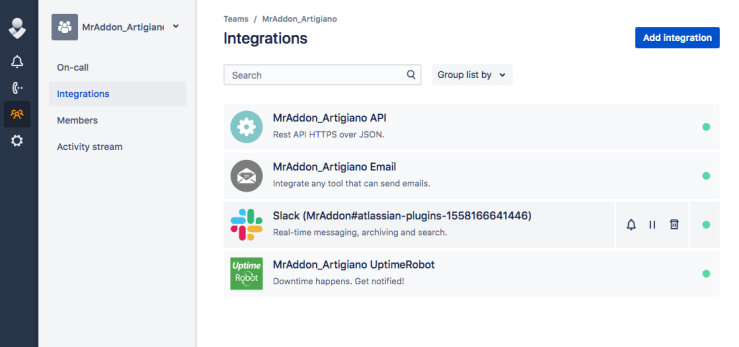

Now we can configure the integrations inside the Team settings, and we can add a new integration to Slack.

Captura de pantalla 2019-05-18 a las 22.51.18

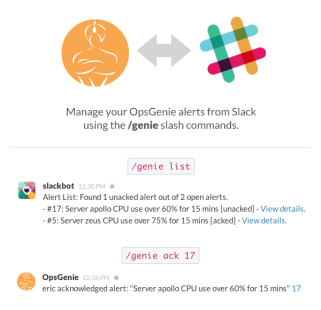

Now just connect the integration with Slack!

BijXbZcCYAAiA4s

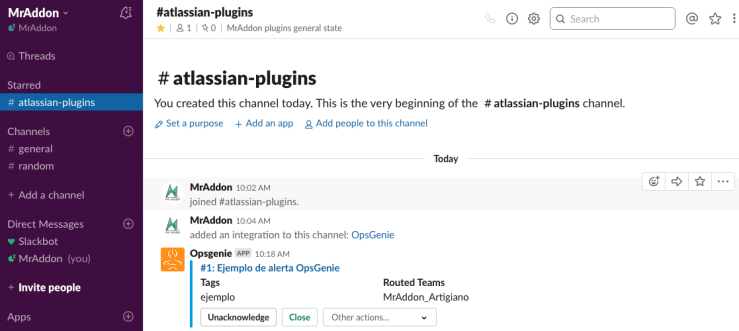

Now it’s connected to the channel selected of Slack

Captura de pantalla 2019-05-18 a las 22.52.55

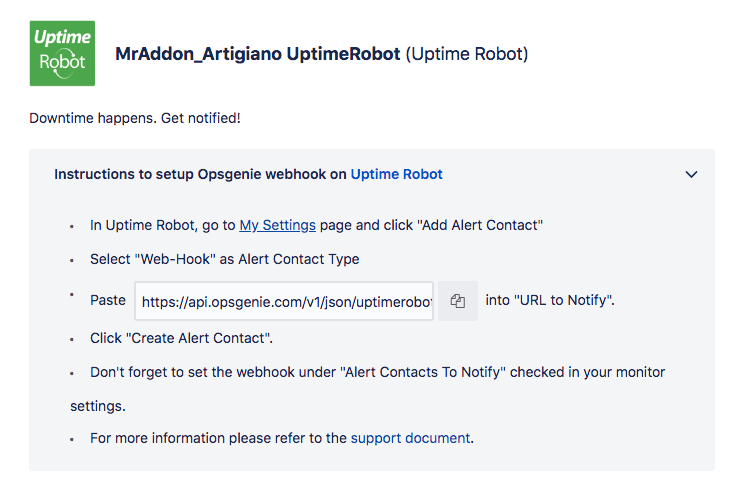

Return to OpsGenie and add the integration with UpTimeRobot too (and follow the instructions)

Captura de pantalla 2019-05-18 a las 22.54.59

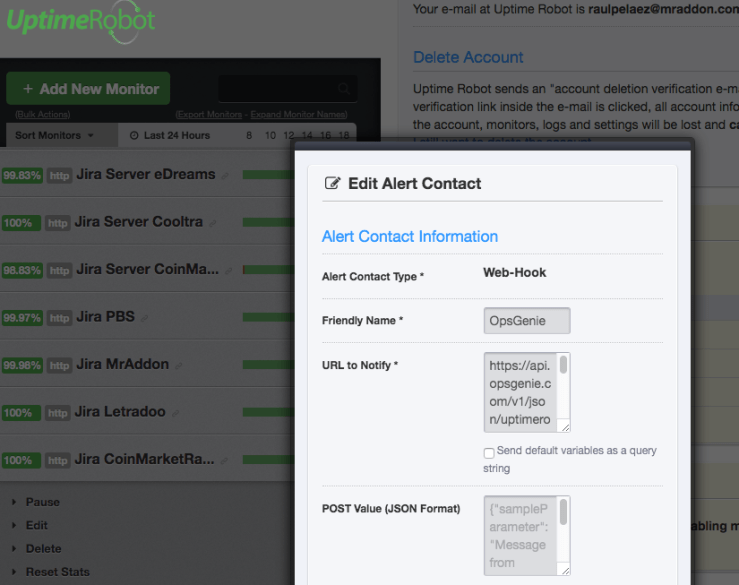

Create a new user in the UpTimeRobot using the settings of the integration

Captura de pantalla 2019-05-18 a las 22.57.23.png

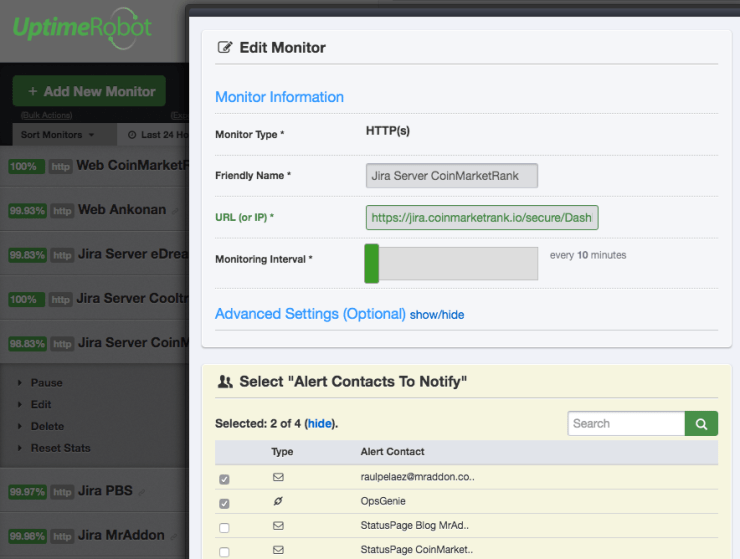

Now remember to add the new “contact” (UptimeRobot) to your OpsGenie!

Captura de pantalla 2019-05-18 a las 22.59.32.png

Now the integration it’s ready! Well done! And the integration is free!

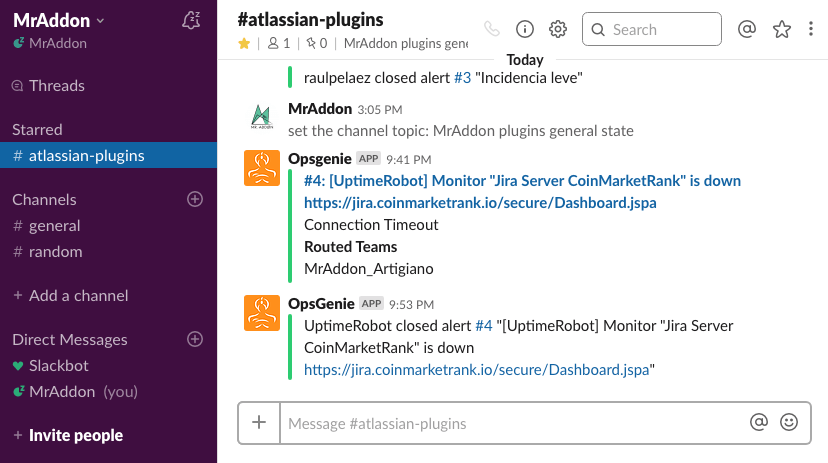

When a downtime is happening UptimeRobot send a notification to a Webhook (API) of OpsGenie. Then OpsGenie send a notification to the Slack channel. The same happens when the service get up again, finally a Slack notification is sent by OpsGenie. See the screenshot below

Captura de pantalla 2019-05-18 a las 22.42.31

Remember, any “alert” (ticket) created in OpsGenie will be sent also to the Mobile App, Mobile SMS and Notification, not only to your email, also for your Slack channel! This app rocks!

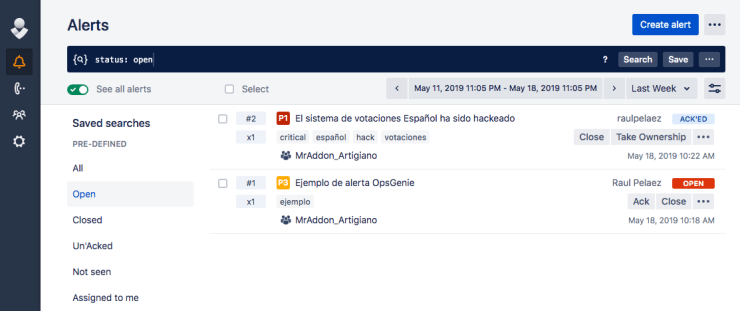

The alerts are very similar to the Jira tickets

Captura de pantalla 2019-05-18 a las 23.05.31.png

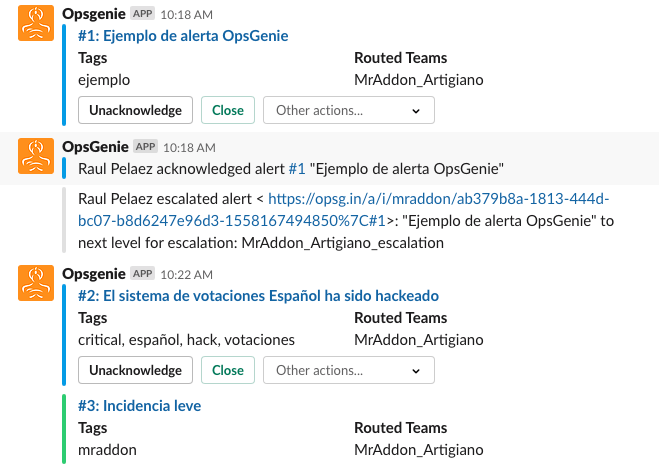

Then, after an alert is triggered, the Team can “Ack” the task!

Captura de pantalla 2019-05-18 a las 23.06.42

That’s all! Very amazing integration for all Ops Teams!

By MrAddon

We recommend take a look to the mobile Apps

Slack mobile App

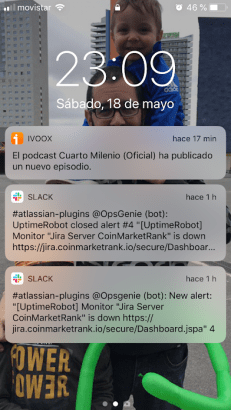

IMG_1511

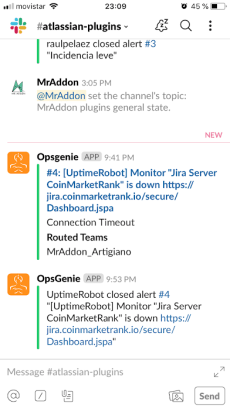

 IMG_1512

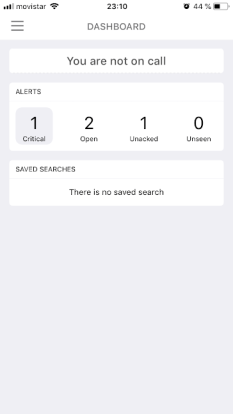

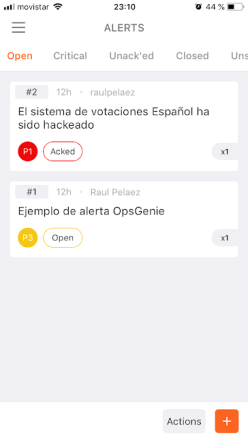

OpsGenie (Jira Ops) Mobile App

IMG_1514 IMG_1513
