Step 1. Create the plugin project

  1. If you have not already set up the Atlassian Plugin SDK, do that now: Set up the Atlassian Plugin SDK and Build a Project.
  2. Enter the following command to create a plugin skeleton:
  3. Choose 1 for JIRA 5 when asked which version of JIRA you want to create the plugin for.
  4. As prompted, enter the following information to identify your plugin:
    group-id com.example.plugins.tutorial.jira
    artifact-id jira-simple-jql-function
    version 1.0-SNAPSHOT
    package com.example.plugins.tutorial.jira
  5. Confirm your entries when prompted.

Step 2. Review and tweak the POM

  1. Change to the new jira-simple-jql-function directory and open the pom.xml file for editing.

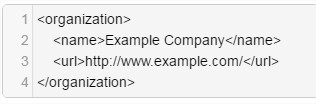

  2. Add your company or organisation name and your website to the <organization> element (the following code blocks show how it looks in plain text): 1
  3. Update the <description> element: 2
  4. Save and close the file.

Step 3. Add your plugin modules

  1. From the plugin root folder (where the pom.xml is located), enter the following command:
  2. Choose the option labelled JQL Function.
  3. Supply the following information as prompted:
    Enter New Classname RecentProjectFunction
    Package Name com.example.plugins.tutorial.jira.jql
  4. Choose N for Show Advanced Setup.
  5. Choose N for Add Another Plugin Module.
  6. Confirm your choices.

Step 4. Review and tweak the plugin descriptor

  1. Change to the src/main/resources/ and open atlassian-plugin.xml for editing.

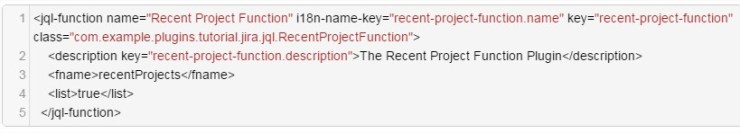

  2. Find the jql-function element and add two elements, fname and list, after the description, as shown here: 3
  3. Save and close the file.

Step 5. Write the plugin code

  1. Change to the source code directory for our function, src/main/java/com/example/plugins/tutorial/jira/jql/
  2. Open the file for editing.

package com.example.plugins.tutorial.jira.jql;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import com.atlassian.jira.JiraDataType;
import com.atlassian.jira.JiraDataTypes;
import com.atlassian.jira.jql.operand.QueryLiteral;
import com.atlassian.jira.jql.query.QueryCreationContext;
import com.atlassian.jira.plugin.jql.function.AbstractJqlFunction;
import com.atlassian.jira.util.MessageSet;
import com.atlassian.jira.util.NotNull;
import com.atlassian.query.clause.TerminalClause;
import com.atlassian.query.operand.FunctionOperand;

import com.atlassian.crowd.embedded.api.User;
import com.atlassian.jira.user.UserHistoryItem;
import com.atlassian.jira.user.UserProjectHistoryManager;
import java.util.LinkedList;

import java.util.Collections;
import java.util.List;

import com.atlassian.jira.user.ApplicationUser; //NOW COMPATIBLE WITH JIRA 6 & 7

public class RecentProjectFunction extends AbstractJqlFunction
private static final Logger log = LoggerFactory.getLogger(RecentProjectFunction.class);
private final UserProjectHistoryManager userProjectHistoryManager;
public RecentProjectFunction(UserProjectHistoryManager userProjectHistoryManager)
this.userProjectHistoryManager = userProjectHistoryManager;
public MessageSet validate(ApplicationUser searcher, FunctionOperand operand, TerminalClause terminalClause)
return validateNumberOfArgs(operand, 0);
public List<QueryLiteral> getValues(QueryCreationContext queryCreationContext, FunctionOperand operand, TerminalClause terminalClause)
final List<QueryLiteral> literals = new LinkedList<QueryLiteral>();
final List<UserHistoryItem> projects = userProjectHistoryManager.getProjectHistoryWithoutPermissionChecks(queryCreationContext.getUser());
for (final UserHistoryItem userHistoryItem : projects)
final String value = userHistoryItem.getEntityId();
literals.add(new QueryLiteral(operand, Long.parseLong(value)));
catch (NumberFormatException e)
log.warn(String.format("User history returned a non numeric project ID '%s'.", value));
return literals;
public int getMinimumNumberOfExpectedArguments()
return 0;
public JiraDataType getDataType()
return JiraDataTypes.PROJECT;

Step 6. Start JIRA and try out the plugin

  1. Run atlas-run
